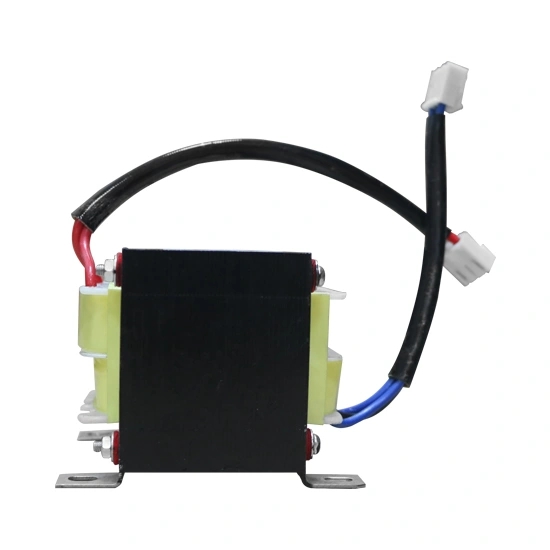

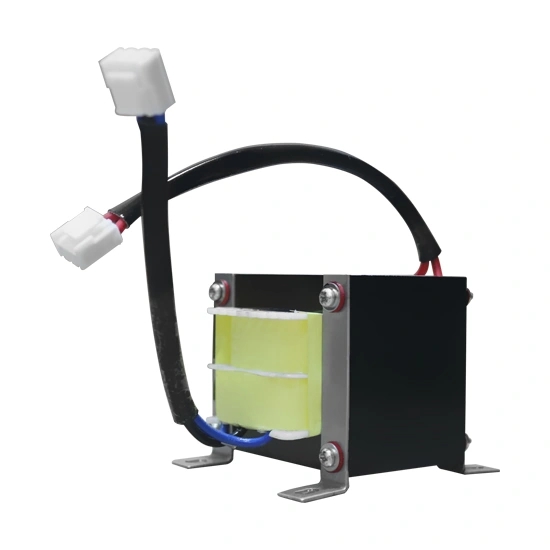

Ei AC Step Down Low Frequency Transformer
Brand power warrior
Product origin Foshan City, GD,China
Delivery time 1--1000pcs Est. Time(20days), >1000pcs To be negotiated
Supply capacity 5000pcs per day
1.Flame retardant skeleton, produced using flame retardant materials guarantee the stability of work at high temperatures.
2.High flux silicon steel sheet high pressure resistance and good insulation performance.
3.Flame retardant mara tape, transformer special mara tape, high temperature performance is guarantee.
4.High temperature resistant flame, Retardant lead, Tin-plated for easy soldering.
5.QA polyurethane enameled wire copper coil is the core of the transformer.
Quick Details
● Place of Origin: Foshan city, GD, China
● Phase: Single Phase
● Coil Structure: EI
● Coil Number: Double winding transformer, Double winding and multi-winding
● Input Voltage: 110v/200v/220v/240v/360v/480v
● Output Voltage: 110v/115v/120v/220v/230v/240vAC
● Frequency: 50Hz/60Hz
● Customized made: Yes
● Manufacturer: Yes
● Temperature rising: ≤75℃
Supply Ability
● Supply Ability: 1000000 Pieces per Month
Packaging & Delivery
● Packaging Details: Packing in carton and delivery in pallet
● Port : Foshan, Guangzhou, Shenzhen
● Lead Time:
| Quantity(Pieces) | 1 - 500 | 501 - 5000 | 5001 - 20000 | >20000 |
| Est. Time(days) | 7 | 12 | 15 | To be negotiated |
Product Description
Ei lower frequency transformer is widely used in program-controlled switches, air conditioner, microwave oven, electric rice cooker, TV set-top boxes, audio systems, lighting systems, network devices, DVD and other products. Is widely used in program-controlled switches, air conditioner, microwave oven, electric rice cooker, TV set-top boxes, audio systems, lighting systems, network devices, DVD and other products.
Input Volatage | 120v-220v |
Frequency | 60hz |
Energy efficiency | >65% |
Standard porwer | 0.5W |
Humidity | 5-95% , no condensation phenomenon |
Compression strength | P-S, 2500 VRMS |
Insulation level | Level A |

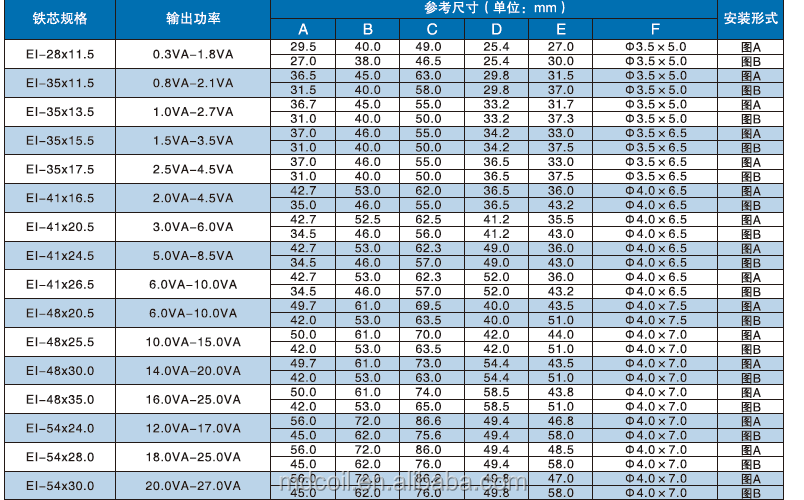

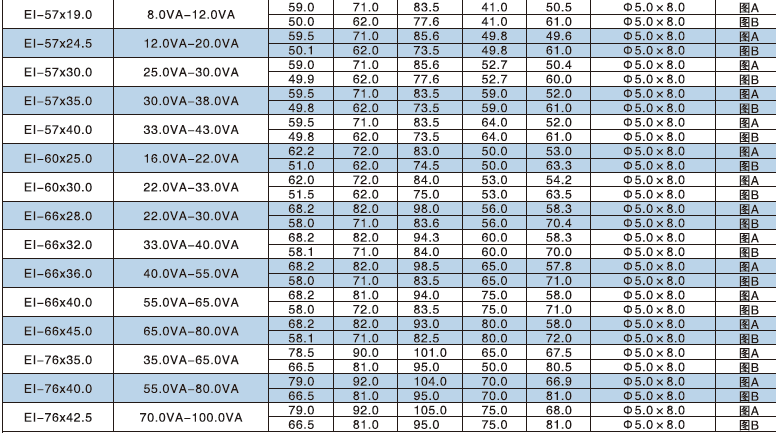

Specification of EI low frequency transformer
| Full Customized Production Service Is Available | |
| Application | Power, Electronic, Instrument,Lighting,Audio... |
| Phase | Single Phase |
| Core | Core-type transformer |
| Core Material | CRGO Silicon Steel |
| Shape of Core | Ring |
| Cooling Method | Dry-type transformer |
| Winding Material | Copper / Aluminium |
| Winding Type | Multi-winding Transformer |
| Usage | Single-phase Transformer,Rectifier Transformer, Combined Transformer |
| Power Transformer, Distribution Transformer... | |
| Frequency Characteristics:Low Frequency 50/60 Hz | |
| Certificate | ISO9001-200, UL ,ISO9001,CCC |
Applications
Transformer can be used for LED lighting,radio and power supply,stepping motor,safety isolation,welding machine,charging equipment,monitoring security,automatic gating,radio and power amplifier,instrumentation, automatic gating,medical equipment, headphone power amplifier, DAC converter , precision instruments,amplifiers, new energy (solar),UPS power,etc.
Welcome to contact us for more further information.
