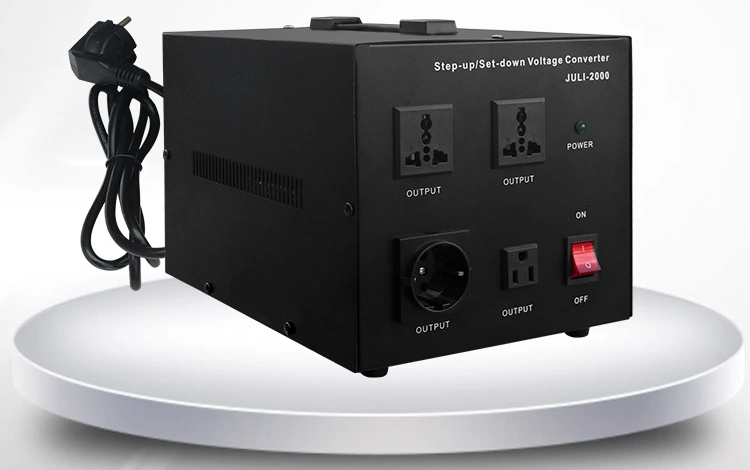

10KVA 110V TO 220V AC Voltage Converter
Brand power warrior
Product origin Foshan city, GD, China
Delivery time 1--1000pcs Est. Time(20days), >1000pcs To be negotiated
Supply capacity 5000pcs per month
1.Coverts single phase 220/240 Volts down to 110/120Volts or 110/120Volts up to 220/240 Volts.
2.C.R.G.O. Transformer.
3.LED power indicator。
4.Fuse (includes two spare fused) protection for model from 100VA to 500VA.
5.Circuit breaker protection for model from 800VA and above.
6.Durable design with a heavy cord
7.CE certificated.
8 universal voltage converter between 220v and 110v
9 OEM service available
POWER TRANSFORMER
AC VOLTAGE CONVERTER
Power customizable 200VA-18000VA
Quick Details
● Place of Origin: Foshan City, GD,China
● Usage: AC voltage converter for some machines and home appliance
● Phase: Single
● Coil Structure: TOROIDAL
● Coil Number: AUTOTRANSFORMER
● Frequency: 50HZ/60HZ
● Power Factor: 20W to 25KW
● Wire: Copper/Alumimium
● Process: Coil Winding
● Insulation: Class B,Class F,Class E,Class H
● Certification: CE,RoHs,ISO
● Temperature rise: ≤65°C
● Core material: CRGO silicon steel core
● Customized made: Yes
● Manufacturer: Yes - full production lines
Supply Ability
● Supply Ability： 50000 Pieces per Month
Packaging & Delivery
● Packaging Details
1.Cartons on pallet.
2.Make the compound board around the carton.
3.Use the stretch wrap to protect the pallet.
● Port：Foshan, Guangzhou, Shenzhen
Specification
Step-up/Set-down Voltage Converter | |||||||
Product Component Name | |||||||
 |
| ||||||
Special Features | |||||||
- High efficiency transformer,less magnetic leakage,low noise and quiet operation - Output(100V\110V\220V) - High Temperature Protection - CE approval | |||||||
Parameter Of Item | |||||||
Input | Input Voltage Range | 110V AC or 220V AC | |||||
Input Frequency | 50/60Hz | ||||||
Output | Output Voltage | 110V AC & 220V AC | |||||
Efficiency | 98% | ||||||
Phase | Single phase | ||||||
Indication | Red LED | Power on | |||||
Certification | CE | ||||||
Specification details | |||||||
Model No | Capacity | Cooling Fan | Machine Size | Net Weight | |||
JULI-500 | 500W | No | 190*160*130mm | 2.5Kgs | |||
JULI-1000 | 1000W | No | 230*130*110mm | 3.2Kgs | |||
JULI-1500 | 1500W | No | 230*130*110mm | 4.0Kgs | |||
JULI-2000 | 2000W | No | 230*130*110mm | 6.5Kgs | |||
JULI-3000 | 3000W | No | 270*160*150mm | 10.5Kgs | |||
JULI-5000 | 5000W | No | 270*160*150mm | 12.8Kgs | |||
JULI-8000 | 8000W | Yes | 370*240*270mm | 20.5Kgs | |||
JULI-10000 | 10000W | Yes | 370*240*270mm | 25.5Kgs | |||
Production manual

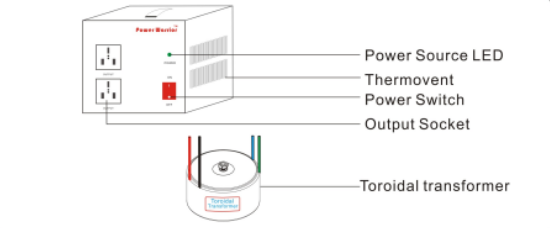

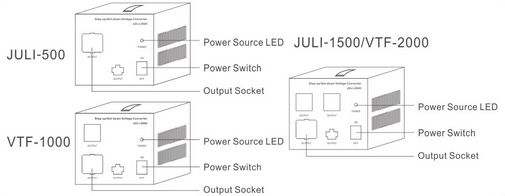

1.Instruction to the converter Familiarize yourself with the various features and facilities by studying the two diagrams below to obtain maximum benefit from the converter. Front of the converter

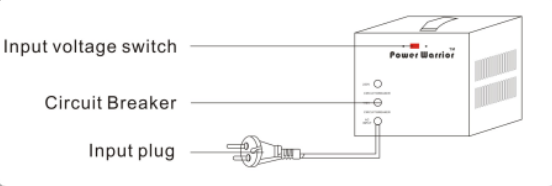

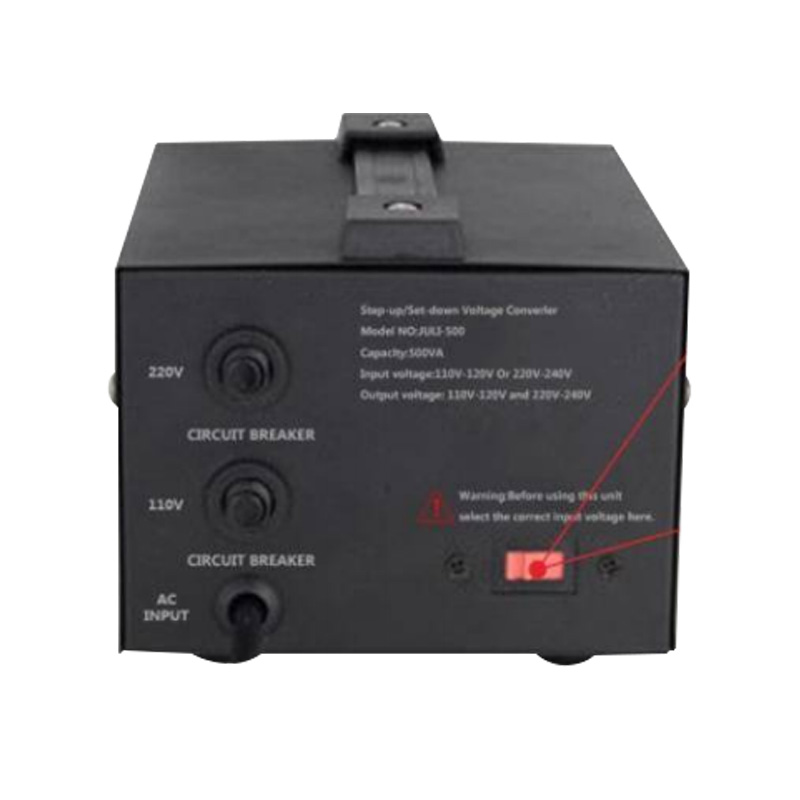

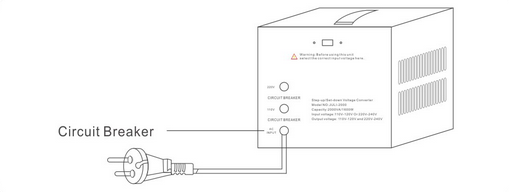

Rear of the converter

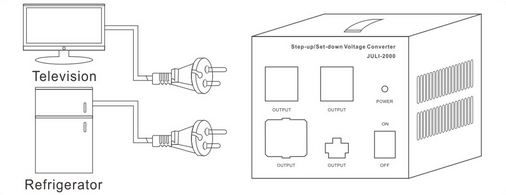

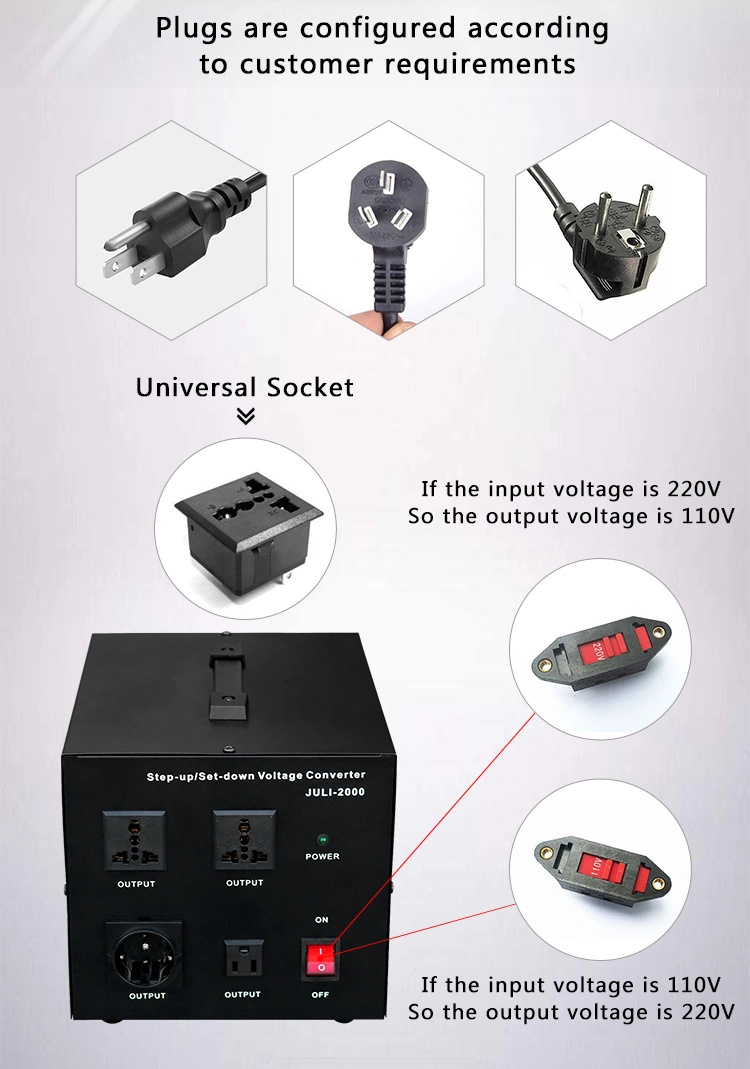

| 2.Connect the electrical appliances to converter Check the wattage requirement of your equipment from the name plate and speces to determine the correct wattage and which converter to be used. If your applianes voltage rating is 110V,your main voltage must be 220V. If your applianes voltage rating is 220V,your main voltage rating must be 110V. *Make sure all appliances are turned “OFF”. Make connections as shown in diagram below ensuring that the total starting power needed does not exceed rated maximum output power of the converter. Select the correct input coltage according to tour area mains.
|

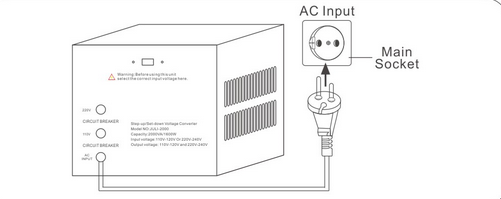

3.Connect converter to electrical mains Plug the AC mains cord to wall mains socket as shown in diagram below and switch “ON”.
| 4.Switch on the converter Switch the power “ON”. Press the power “ON/OFF” switch to “ON” position and LED will illuminate. Switch “ON” the appliances one by one. |

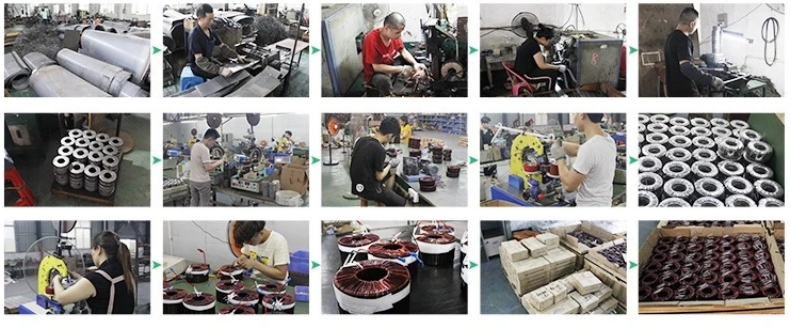

Product process
Application Scenario
Medical | Shredder | Audio | Industrial control |
|
|
|
|
Security monitoring | Lighting/LED | Transformer for Household appliances | Solar inverter |
|
|
|
|
Company Information
Juli Electromechanical is dedicated to providing stable and reliable power products for the families over
10 countries. Main products include voltage stabilizer, uninterruptible power supply, DC to AC inverter,
solar inverter, transformer, etc.

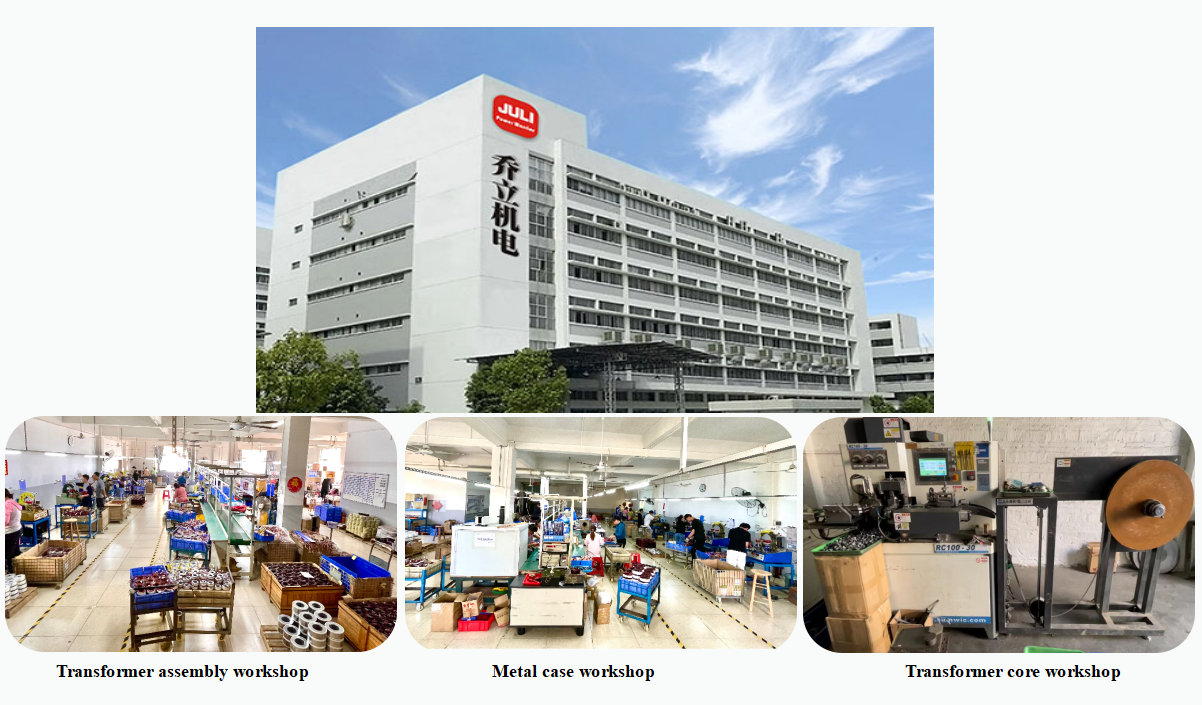

We owns a complete production facilities to serve customers well: one transformer core workshop, one
transformer assembly workshop, one metal case workshop, one final assembly workshop. All the key
processes are performed in-house, so that the quality and delivery time are under control.
Customers can experience a strong R&D capability in JULI: engineers working on Industrial Design
/Outlook Design, PCBA Layout, MCU programming, Mechanical/Tooling, Prototyping. A new product
can be finished within 35 days.
Our Services
Customizing welders according to customers' requirements.
Delivery time for sample order: 7-10 days, for bulk orders 10-35 days
Warranty: 3 year . (we will send 1% valued free spare parts)

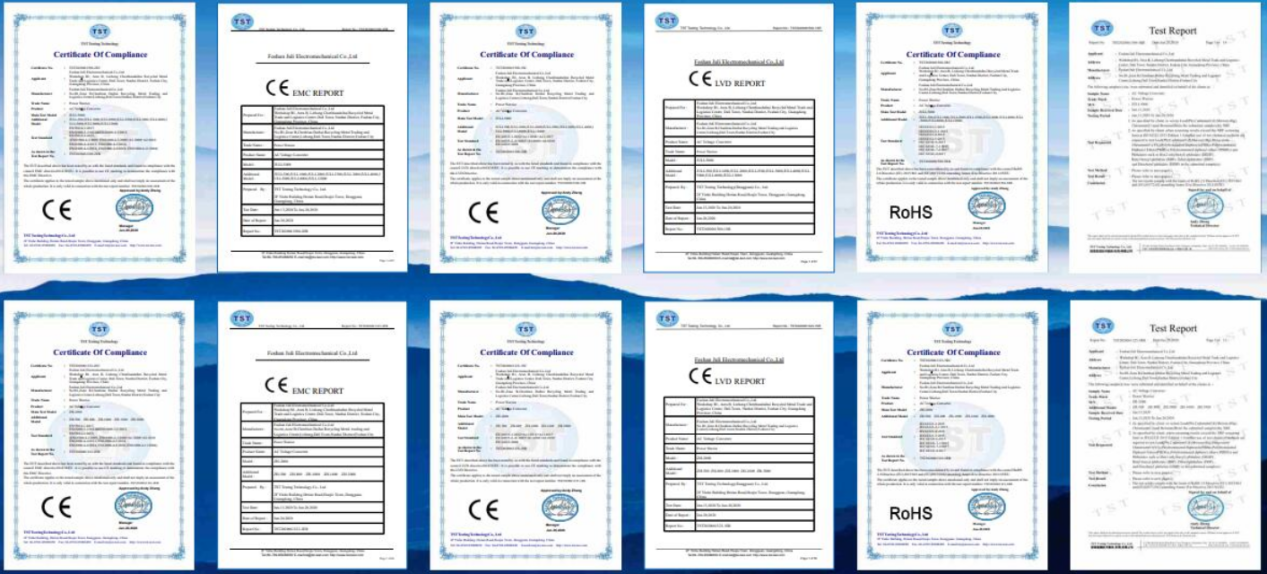

Certification
CE,RoHS, ISO9001 certified.
Product Categories
| ||
|
|
|
EI TRANSFORMER | IRON CORE | POWER TRANSFORMER |
|
|
|
TOROIDAL TRANSFORMER | WATERPROOF TRANSFORMER | HIGH FREQUENCY TRANSFORMER |
Q & A
Q: How To Order?
A: Step 1, please tell us what model and quantity you need, and live your contact infomation.
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed OEM or ODM details
Step 4, finally we deliver the goods within the stipulated time.
Q: What is the MOQ?
A: Depends on models. From 20-500 pieces. Accept sample.
Also can mix models in 1 container.
Q: Can you produce according to our samples?
A: Yes, we can produce according to your samples or technical drawing, we will make the molds and
fixtures. Both OEM & ODM is available.
Q: What is your delivery term?
A: EXW, FOB, CFR, CIF.
Q: When you ship my order?
R: Normally, it takes about 7 to 30 days after receiving your advance payment.
Q: What is your sample's policy?
A: We provide the sample according to your requirements, and you get to pay the sample's fee and
courier freight, we will return the sample fee to you once you confirm the normal order.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: How about the quality guarantee period?
R: One year.
Q: Do you have the certificates?
A: Yes, we have passed the CE, RoHS and IAF certifications. Other certifications can be prepared.
Q: How do you make our business longterm and good relationship?
A: Firstly, we provide good quality products with competitive price, to ensure our customer's
benefit; Secondly, we respect our customers as our friends, grow up together.
Welcome to contact us for more further information.
